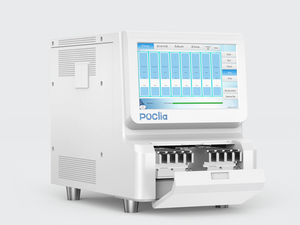

POCT chemiluminescence immunoassay analyzer dual chamber 16 channels, 64 tests per hour

Advanced Chemiluminescence Methodology

Test Menu

Product Advantage

(1)More accurate: Enzyme-catalyzed (ALP) chemiluminescence, the results are accurate

(2)More stable: CV≤5%

Instrument without liquid flow system, ultra-low failure rate

(3)Faster: quick results in 15 minutes; 8 channels in parallel, quickly process a large number of samples

(4)More economical: single serving, no waste

 Computer： Built-in Screen： LCD touch-screen

◆Specifications and performance Double chambers operate independently , can realize the emergency function

◆Test batch size: 32-channel parallel test (random test item combination)

◆Test time: Depending on the test item

◆ Sample type :Human plasma/Serum/Plasma/Urine(depends on reagent type)

◆Principle :CLEIA and Magnetic separation methodology

◆Incubation temperature :37 ℃-42℃（depends on reagent type）

◆Sample volume: 30-200ul（depends on reagent type）

◆Spectrum :300-650nm Data storage

◆Patient data: >100000 QC Data >100000

◆Calibration Data >100000

◆Dimensions ：520（W）*550（D）*550（H）mm

◆Weight ：55kg（approx）

◆Power supply ：100-240 Vac

◆Power frequency：50Hz

◆Input power： 200VA

◆Printer： Built-in Computer
